8045mini Table Top Multimeter 30000 Counts Electrician Transistor Capacitance Tester
8045mini Multimeter True RMS 30000 counts High precision Desktop Multimetro for electrician Transistor Capacitance tester
Feature:
This instrument digital multimeter is a high performance of digital bench multimeter for measuring DCV, ACV, DCA, ACA, OHM, CAP, Hz, hFE, Diodes and Continuity. The max. voltage is 1000V DC or AC peak value, resolution can be 10μV,and max. current is 20A,it also has the function of polarity auto-change, backlight display and directly reading.
For AC measuring, it is performed by high accuracy TRUE RMS, can test the bandwidth of the frequency, and the TRUE RMS of any waveform can be accurately measured.
Standard attachments:
1). User manual (quick guide): 1pc;
2). Test leads: 1 pair;
3). K-type temperature probe (-20 ℃~250 ℃): 1pc
4). Type-C charging cable: 1pc;
5). USB data cable: 1pc;

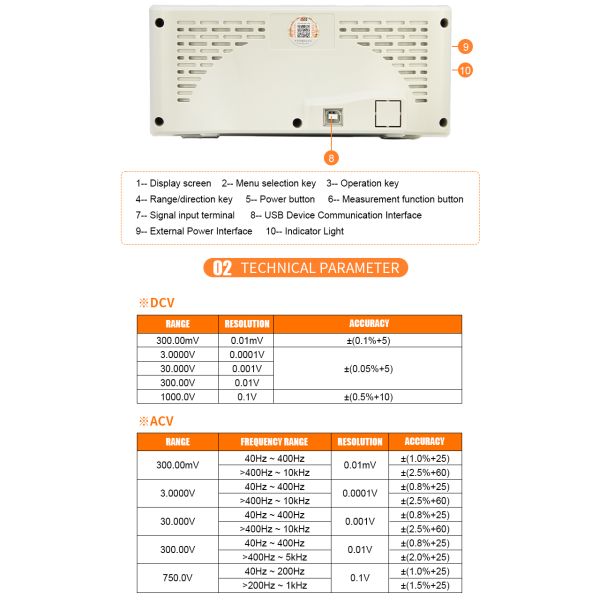

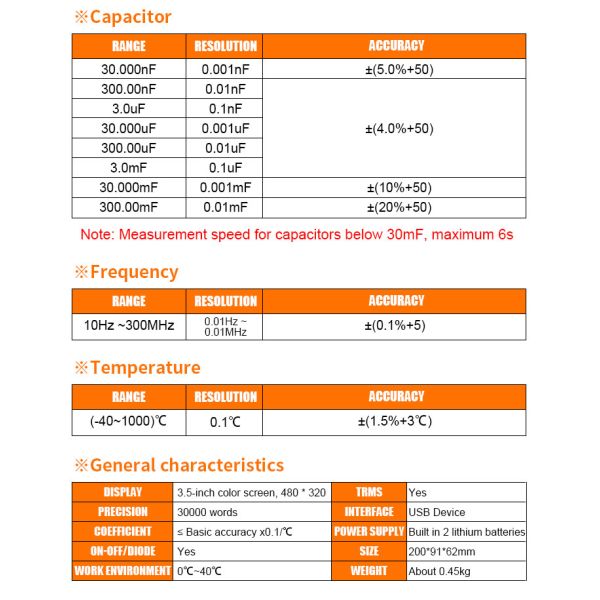

TECHNICAL SPECIFICATION
Comprehensive indicators
| Display screen |

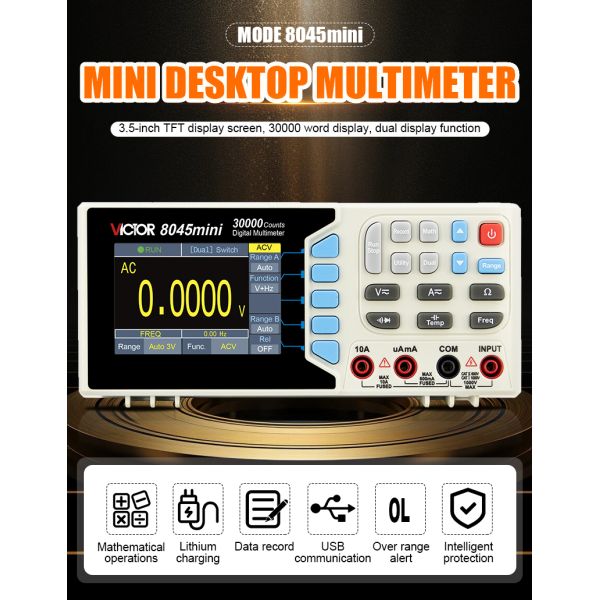

3.5-inch TFT display ,
resolution 480 * 320
|
| Measuring accuracy |
30000 words |
|
Working environment
|
Operating temperature:
0℃-40℃
|
|
Storage temperature: -25 ℃ to
50 ℃
|
|
Relative humidity: ≤ 90%
5-28 ℃ (non condensing)
|
| ≤80% 28～40℃ |
|
≤70% 10-40 ℃ (for high
resistance ranges above 300KΩ)
|
|
Temperature
coefficient
|
≤ basic accuracy ×0.1/℃
(5-18 ℃, 28～40℃)
|
| Altitude |
Not exceeding 2000m |
|
Product power supply
|
Built-in rechargeable lithium batteries (2 × 18650)/TYPE-C
5V power supply
|
|
Electromagnetic
compatibility
|
Compliant with EMC directive
and standard EN 61326-1
|
| Security |
Compliant with low voltage |
| |
directive and standard EN
61010-1
|
|
Configuration
interface
|
USB Device |
| Soak time |
15 minutes |
| Size |
200×90.64×62mm |

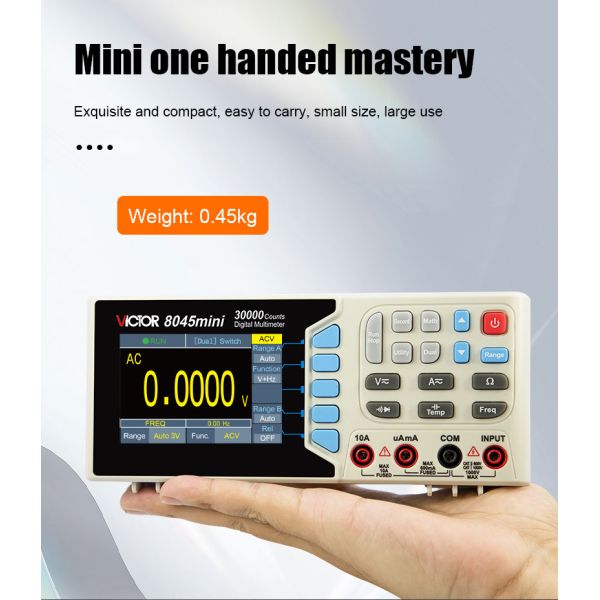

| Weight |
About 440g |
|
Current fuse
|
600mA 250V 5×20mm
(built-in)/10A 250V 5×20 (built-in)
|
| Pollution level |
2 |
|
|
VICTOR 8045mini mini size Table Top Multimeter 30000 Counts DMM bench type multimeter with colorful display Images
|
